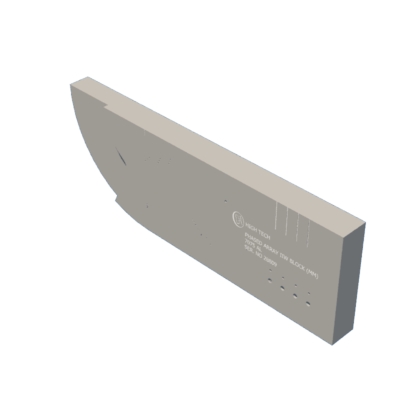

PA-IIW-M-7075

PHASED ARRAY CALIBRATION BLOCK TYPE A (METRIC VERSION)

The Phased Array block type A (metric version) has the following Phased Array applications described:

Beam angle verification.
Sensitivity calibration.
Wedge delay calibration.
DAC/TCG and more.

Features:

• Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W).
• Weight: 4.178 LBS
• Material: 7075-T6 ALUMINIUM
• Specifications: ASTM E 164 FIG. A1.1
