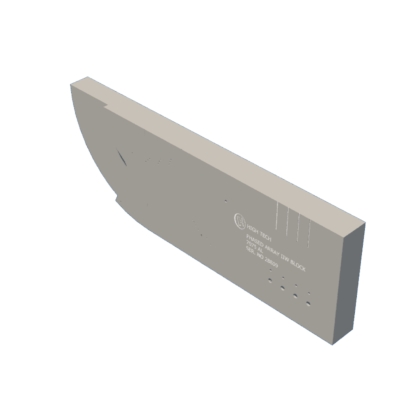

PA-IIW-7075

PHASED ARRAY CALIBRATION BLOCK TYPE A (IMPERIAL)

The Phased Array Type A block has the following Phased Array applications described:

Beam angle verification.
Sensitivity calibration.
Wedge delay calibration.
DAC/TCG and more.

Features:

• Dimensions: 4″ (height) X 12″ (length) X 1″ (width).
• Weight: 4,310 LBS
• Material: 7075-T6 ALUMINUM
• Specifications: ASTM E 164 FIG. A1.1
