K2-304-3-1

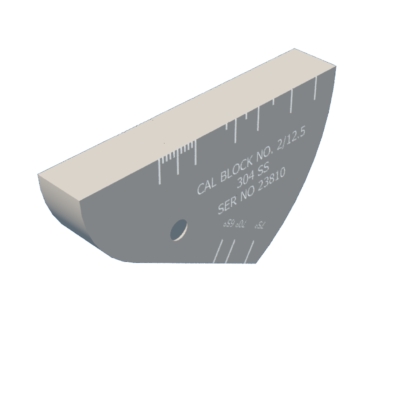

CALIBRATION BLOCK No. 2 (K2) (12.5 mm THICKNESS) (DOUBLE MARKED)

Used for on-site checking of index, time base, beam angle and gain of miniature shear wave probe. Manufactured in accordance with EN 27963, DIN 54-120 and ISO 7963. Marking present on both sides of the block. 12.5 mm thickness.

Characteristics:

• Dimensions: 1.705″ (H) X 2.953″ (L) X 0.492″ (W).
• Weight: 0.475 LBS
• Material: 304 STAINLESS STEEL
• Specifications: EN 27963, DIN 54-120 & ISO 7963
