IIW2-M-7075

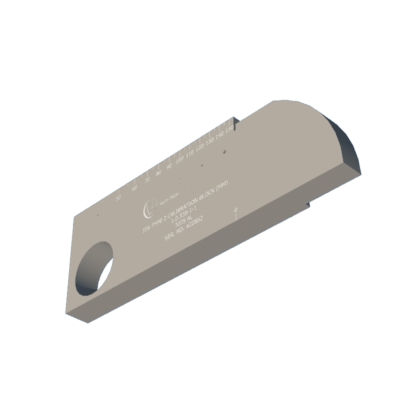

IIW TYPE 2 UT CALIBRATION BLOCK (METRIC)

Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) (Metric Version) is used for the purposes described below:

Calibration of sensitivity, distance, resolution and horizontal linearity on straight beam transducers.
Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

Features:

• Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W).
• Weight: 3.952 LBS
• Material: 7075-T6 ALUMINUM
• Specifications: ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
