IIW2-7075

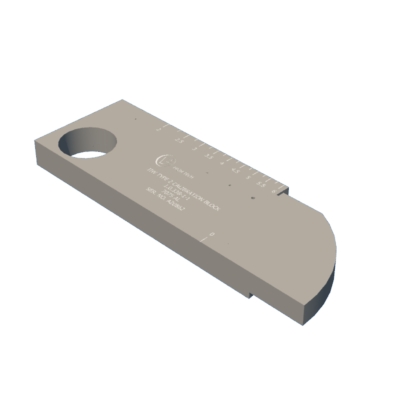

IIW TYPE 2 UT (IMPERIAL) CALIBRATION BLOCK

Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) is used for the purposes described below:

– Calibration of sensitivity, distance, resolution, and horizontal linearity on.

Straight beam transducers.

– Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

Features

• Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
• Weight: 4,110 LBS
• Material: 7075-T6 ALUMINIUM
• Specifications: ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
