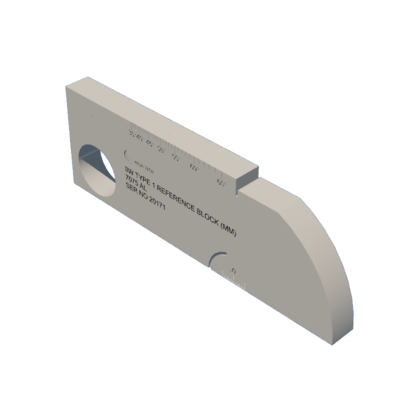

IIW1-M-7075

CALIBRATION BLOCK IIW TYPE 1 UT (METRIC VERSION)

Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block (metric version) is used for the purposes described below:

• Calibration of shear and longitudinal transducers.
• Verification of shear wedge exit point and refracted angle.
• Verification of resolution and sensitivity.

Features

• Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W)
• Weight: 4.086 LBS
• Material: 7075-T6 ALUMINIUM
• Specifications: ASTM E 164 FIG. A1.1
