IIW1-M-1018

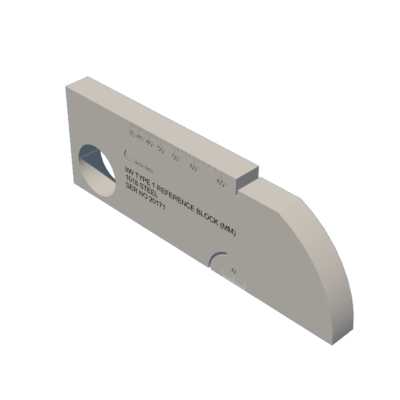

CALIBRATION BLOCK IIW TYPE 1 UT (METRIC VERSION)

Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block (metric version) is used for the purposes described below:

Calibration of shear and longitudinal transducers.
Verification of shear wedge exit point and refracted angle.
Verification of resolution and sensitivity.

Features

• Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W)
• Weight: 11.231 LBS
• Material: 1018 STEEL, NICKEL PLATED
• Specifications: ASTM E 164 FIG. A1.1
