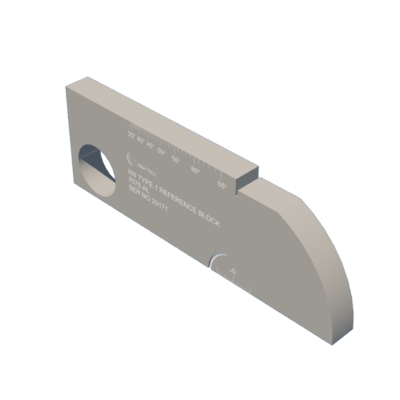

IIW1-7075

CALIBRATION BLOCK IIW TYPE 1 UT (IMPERIAL)

Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block is used for the purposes described below:

• Calibration of shear and longitudinal transducers.
• Verification of shear wedge exit point and refracted angle.
• Verification of resolution and sensitivity.

Features

• Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
• Weight: 4,286 LBS
• Material: 7075-T6 ALUMINIUM
• Specifications: ASTM E 164 FIG. A1.1
