IIW1-1018

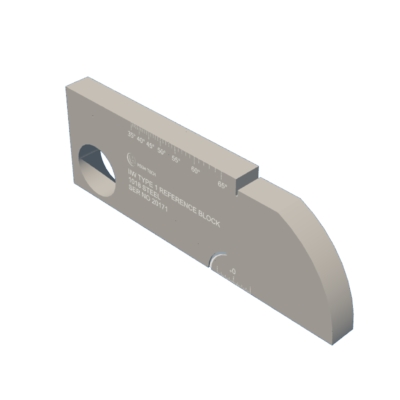

CALIBRATION BLOCK IIW TYPE 1 UT (IMPERIAL)

Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block is used for the purposes described below:

Calibration of shear and longitudinal transducers.
Verification of shear wedge exit point and refracted angle.
Verification of resolution and sensitivity.

Features

• Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
• Weight: 11,779 LBS
• Material: 1018 STEEL, NICKEL PLATED
• Specifications: ASTM E 164 FIG. A1.1
