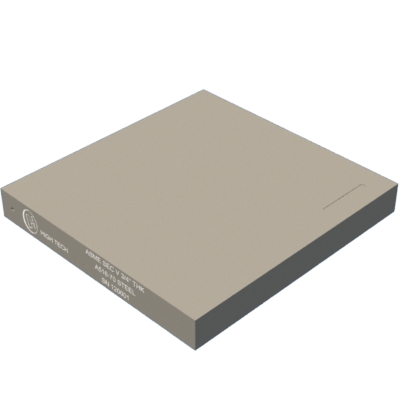

ASME SEC V UT CALIBRATION BLOCK (3/4″ THICK)

The Asme Sec V ¾ block is used for obtaining primary reference responses in ultrasonic inspection of welds. The calibration block is made with 1 laterally drilled hole on one face (at 3/32″ diameter, 1.75″ deep, located through the thickness at 1/2T), 2 laterally drilled holes on the opposite face (at 3/32″ diameter, 1. 75″ deep, located through the thickness at ¼ and 3/4T), 2 EDM notches on the top and bottom faces, both sized at 2%T deep x 1/8″ wide x 1-3/8″ long.

Customization available if needed for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

Features

• Dimensions: 0.75″ (H) X 6.25″ (L) X 6.0″ (W)
• Weight: 7.964 LBS
• Material: ASTM A516 GRADE 70 STEEL.
• Specifications: ASME SEC V, ART 4, FIG. T-434.2.1
