PA-IIW-1018

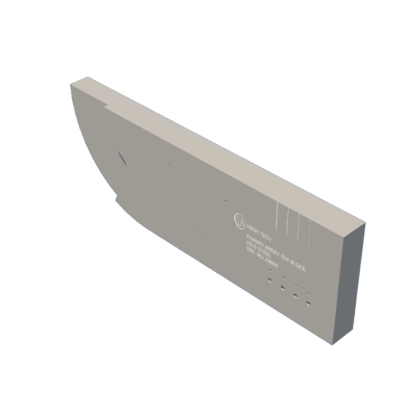

PHASED ARRAY CALIBRATION BLOCK TYPE A (IMPERIAL)

The Phased Array Type A block has the following Phased Array applications described:

Beam angle verification.
Sensitivity calibration.
Wedge delay calibration.
DAC/TCG and more.

Features:

• Dimensions: 4″ (height) X 12″ (length) X 1″ (width).
• Weight: 12,072 LBS
• Material: 1018 STEEL, NICKEL PLATED
• Specifications: ASTM E 164 FIG. A1.1
