Showing 65–80 of 102 results
CALIBRATION BLOCK No. 2 (K2) (25 mm THICK) (DOUBLE MARKED)
Used for on-site checking of index, time base, beam angle and gain of miniature shear wave probe. Manufactured in accordance with EN 27963, DIN 54-120 and ISO 7963. Marking present on both sides of the block. Thickness 25 mm.
Characteristics:

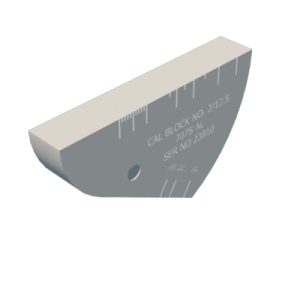

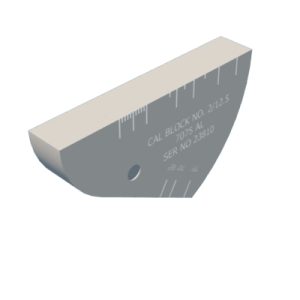

CALIBRATION BLOCK No. 2 (K2) (12.5 mm THICK)
Used for on-site checking of index, time base, beam angle and gain of miniature shear wave probe. Manufactured in accordance with EN 27963, DIN 54-120 and ISO 7963. 12.5 mm thickness.
Features:
CALIBRATION BLOCK No. 2 (K2) (12.5 mm THICKNESS) (DOUBLE MARKED)
Used for on-site checking of index, time base, beam angle and gain of miniature shear wave probe. Manufactured in accordance with EN 27963, DIN 54-120 and ISO 7963. Marking present on both sides of the block. 12.5 mm thickness.
Characteristics:
CALIBRATION BLOCK No. 2 (K2) (25 mm THICK)
Used for on-site checking of index, time base, beam angle and gain of miniature shear wave probe. Manufactured in accordance with EN 27963, DIN 54-120 and ISO 7963. 25 mm thickness.
Features:
CALIBRATION BLOCK No. 2 (K2) (25 mm THICK) (DOUBLE MARKED)
Used for on-site checking of index, time base, beam angle and gain of miniature shear wave probe. Manufactured in accordance with EN 27963, DIN 54-120 and ISO 7963. Marking present on both sides of the block. Thickness 25 mm.
Characteristics:
MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)
The Mini Angle Beam (Mini Angle Beam or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured to ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 2″/50mm radius, a 1″/25mm opposing radius and a flat bottom hole 1.0780″/2mm in diameter and 0.75″/18.75mm deep.
Features:
MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)
MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)
The Mini Angle Beam (Mini Angle Beam or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured to ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 2″/50mm radius, a 1″/25mm opposing radius and a flat bottom hole 1.0780″/2mm in diameter and 0.75″/18.75mm deep.
Features:
MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)
The Mini Angle Beam (Mini Angle Beam or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured to ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 2″/50mm radius, a 1″/25mm opposing radius and a flat bottom hole 1.0780″/2mm in diameter and 0.75″/18.75mm deep.
Features:
MINI ANGLE CALIBRATION BLOCK FOR ULTRASOUND (METRIC)
The Mini Angle Beam Block (Angle Beam Block or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured in accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 50 mm radius, a 25 mm opposing radius and a 2 mm diameter, 18.75 mm deep flat bottom hole.
Features
MINI ANGLE BEAM UT CALIBRATION BLOCK (METRIC)
The Mini Angle Beam (Mini Angle Beam) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured in accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 50 mm radius, a 25 mm opposing radius, and a 2 mm diameter, 18.75 mm deep flat bottom hole.
Features:
MINI ANGLE BEAM UT CALIBRATION BLOCK (METRIC)
The Mini Angle Beam Block (Angle Beam Block or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured in accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 50 mm radius, a 25 mm opposing radius, and a 2 mm diameter, 18.75 mm deep flat bottom hole.
Features:
NAVSHIPS CALIBRATION BLOCK TYPE UT (MARE ISLAND TYPE)
The navships block is used for distance amplitude correction, sensitivity levels and flaw depth information. Surface ground to a 16 Ra finish and manufactured in accordance with MIL-STD-271G Figure 9 and NAVSHIPS Specification 0900-006-3010/Section 6, the block includes 6 3/64″ diameter through holes at scan surface distances of 0.25″, 0.50″, 0.75″, 1.00″, 1.25″ and 1.50″.
Features:
NAVSHIPS CALIBRATION BLOCK TYPE UT (MARE ISLAND TYPE)
The navships block is used for distance amplitude correction, sensitivity levels and flaw depth information. Surface ground to a 16 Ra finish and manufactured in accordance with MIL-STD-271G Figure 9 and NAVSHIPS Specification 0900-006-3010/Section 6, the block includes 6 3/64″ diameter through holes at scan surface distances of 0.25″, 0.50″, 0.75″, 1.00″, 1.25″ and 1.50″.
Features:
NAVSHIPS CALIBRATION BLOCK TYPE UT (MARE ISLAND TYPE)
The navships block is used for distance amplitude correction, sensitivity levels and flaw depth information. Surface ground to a 16 Ra finish and manufactured in accordance with MIL-STD-271G Figure 9 and NAVSHIPS Specification 0900-006-3010/Section 6, the block includes 6 3/64″ diameter through holes at scan surface distances of 0.25″, 0.50″, 0.75″, 1.00″, 1.25″ and 1.50″.
Features:
E2491 PHASED ARRAY CALIBRATION BLOCK (IMPERIAL)
Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block focuses on beam steering capability and capacity. Manufactured in accordance with ASTM E2491.
Features:
E2491 PHASED ARRAY CALIBRATION BLOCK (IMPERIAL)
Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block focuses on beam steering capability and capacity. Manufactured in accordance with ASTM E2491.
Features:
