Mini Angle Beam Block

  • MAB-1018

    MAB-1018

    MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)

    The Mini Angle Beam (Mini Angle Beam or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured to ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 2″/50mm radius, a 1″/25mm opposing radius and a flat bottom hole 1.0780″/2mm in diameter and 0.75″/18.75mm deep.

    Features:

    • Dimensions: 1.732″ (H) X 3″ (L) X 1″ (W).
    • Weight: 0.989 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E 164 FIG. A1.12.
    Read moreDone
  • MAB-304

    MAB-304

    MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)

    MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)

    The Mini Angle Beam (Mini Angle Beam or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured to ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 2″/50mm radius, a 1″/25mm opposing radius and a flat bottom hole 1.0780″/2mm in diameter and 0.75″/18.75mm deep.

    Features:

    • Dimensions: 1.732″ (H) X 3″ (L) X 1″ (W).
    • Weight: 1.006 LBS
    • Material: STAINLESS STEEL 304
    • Specifications: ASTM E 164 FIG. A1.12.
    Read moreDone
  • MAB-7075

    MAB-7075

    MINI ANGLE BEAM UT CALIBRATION BLOCK (IMPERIAL)

    The Mini Angle Beam (Mini Angle Beam or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured to ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 2″/50mm radius, a 1″/25mm opposing radius and a flat bottom hole 1.0780″/2mm in diameter and 0.75″/18.75mm deep.

    Features:

    • Dimensions: 1.732″ (H) X 3″ (L) X 1″ (W).
    • Weight: 0.353 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.12.
    Read moreDone
  • MAB-M-1018

    MAB-M-1018

    MINI ANGLE CALIBRATION BLOCK FOR ULTRASOUND (METRIC)

    The Mini Angle Beam Block (Angle Beam Block or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured in accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 50 mm radius, a 25 mm opposing radius and a 2 mm diameter, 18.75 mm deep flat bottom hole.

    Features

    • Dimensions: 1.705″ (height) X 2.953″ (length) X 0.984″ (width)
    • Weight: 0.943 LBS
    • Material: 1018 STEEL, NICKEL PLATED.
    • Specifications: ASTM E 164 FIG. A1.12.
    Read moreDone

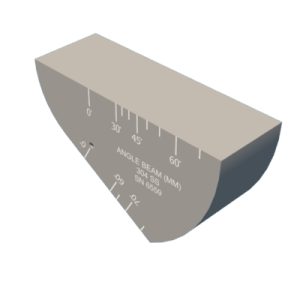

  • MAB-M-304

    MAB-M-304

    MINI ANGLE BEAM UT CALIBRATION BLOCK (METRIC)

    The Mini Angle Beam (Mini Angle Beam) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured in accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 50 mm radius, a 25 mm opposing radius, and a 2 mm diameter, 18.75 mm deep flat bottom hole.

    Features:

    • Dimensions: 1.705″ (height) X 2.953″ (length) X 0.984″ (width).
    • Weight: 0.959 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.12.
    Read moreDone
  • MAB-M-7075

    MAB-M-7075

    MINI ANGLE BEAM UT CALIBRATION BLOCK (METRIC)

    The Mini Angle Beam Block (Angle Beam Block or Rompas) is a substitute for the DSC Block. It is used to calibrate distance, beam index, refracted angle and sensitivity. Manufactured in accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications, the block includes a 50 mm radius, a 25 mm opposing radius, and a 2 mm diameter, 18.75 mm deep flat bottom hole.

    Features:

    • Dimensions: 1.705″ (height) X 2.953″ (length) X 0.984″ (width).
    • Weight: 0.337 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.12.
