PA Type A Block

  • PA-2491-1018

    PA-2491-1018

    E2491 PHASED ARRAY CALIBRATION BLOCK (IMPERIAL)

    Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block focuses on beam steering capability and capacity. Manufactured in accordance with ASTM E2491.

    Features:

    • Dimensions: 4″ (height) X 6″ (length) X 1″ (width).
    • Weight: 6,773 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E2491
    Read moreDone

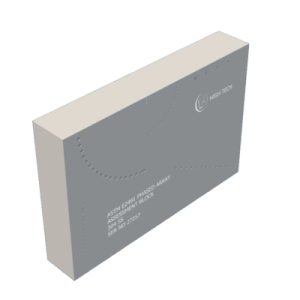

  • PA-2491-304

    PA-2491-304

    E2491 PHASED ARRAY CALIBRATION BLOCK (IMPERIAL)

    Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block focuses on beam steering capability and capacity. Manufactured in accordance with ASTM E2491.

    Features:

    • Dimensions: 4″ (height) X 6″ (length) X 1″ (width).
    • Weight: 6,885 LBS
    • Material: STAINLESS STEEL 304
    • Specifications: ASTM E2491
    Read moreDone
  • PA-2491-7075

    PA-2491-7075

    E2491 PHASED ARRAY CALIBRATION BLOCK (IMPERIAL)

    Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block focuses on beam steering capability and capacity. Manufactured in accordance with ASTM E2491.

    Features:

    • Dimensions: 4″ (height) X 6″ (length) X 1″ (width).
    • Weight: 2,418 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E2491
    Read moreDone
  • PA-2491-M-1018

    PA-2491-M-1018

    E2491 PHASED ARRAY CALIBRATION BLOCK (METRIC)

    Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block (metric version) focuses on beam steering capability and capacity. Manufactured in accordance with ASTM E2491.

    Features:

    • Dimensions: 3.937″ (H) X 5.906″ (L) X 0.984″ (W).
    • Weight: 6.459 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E2491
    Read moreDone
  • PA-2491-M-304

    PA-2491-M-304

    E2491 PHASED ARRAY CALIBRATION BLOCK (METRIC)

    Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block (metric version) focuses on beam capacity and beam direction. Manufactured in accordance with ASTM E2491.

    Features:

    • Dimensions: 3.937″ (H) X 5.906″ (L) X 0.984″ (W).
    • Weight: 6.565 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E2491
    Read moreDone
  • PA-2491-M-7075

    PA-2491-M-7075

    E2491 PHASED ARRAY CALIBRATION BLOCK (METRIC)

    Used to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution. This reference block (metric version) focuses on beam capacity and beam direction. Manufactured in accordance with ASTM E2491.

    Features:

    • Dimensions: 3.937″ (H) X 5.906″ (L) X 0.984″ (W).
    • Weight: 2.306 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E2491
    Read moreDone
  • PA-IIW-1018

    PA-IIW-1018

    PHASED ARRAY CALIBRATION BLOCK TYPE A (IMPERIAL)

    The Phased Array Type A block has the following Phased Array applications described:

    Beam angle verification.
    Sensitivity calibration.
    Wedge delay calibration.
    DAC/TCG and more.

    Features:

    • Dimensions: 4″ (height) X 12″ (length) X 1″ (width).
    • Weight: 12,072 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone

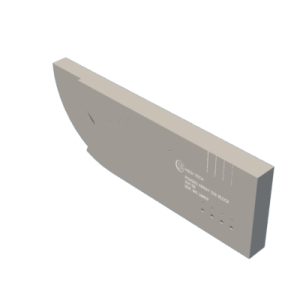

  • PA-IIW-304

    PA-IIW-304

    Read moreDone
  • PA-IIW-7075

    PA-IIW-7075

    PHASED ARRAY CALIBRATION BLOCK TYPE A (IMPERIAL)

    The Phased Array Type A block has the following Phased Array applications described:

    Beam angle verification.
    Sensitivity calibration.
    Wedge delay calibration.
    DAC/TCG and more.

    Features:

    • Dimensions: 4″ (height) X 12″ (length) X 1″ (width).
    • Weight: 4,310 LBS
    • Material: 7075-T6 ALUMINUM
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone
  • PA-IIW-M-1018

    PA-IIW-M-1018

    PHASED ARRAY CALIBRATION BLOCK TYPE A (METRIC VERSION)

    The Phased Array block type A (metric version) has the following Phased Array applications described:

    Beam angle verification.
    Sensitivity calibration.
    Wedge delay calibration.
    DAC/TCG and more.

    Features:

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W).
    • Weight: 11.701 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone

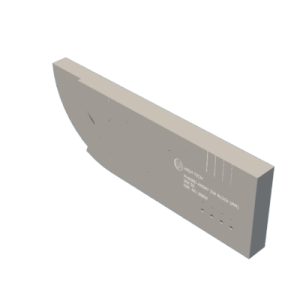

  • PA-IIW-M-304

    PA-IIW-M-304

    PHASED ARRAY CALIBRATION BLOCK TYPE A (METRIC VERSION)

    The Phased Array block type A (metric version) has the following Phased Array applications described:

    Beam angle verification.
    Sensitivity calibration.
    Wedge delay calibration.
    DAC/TCG and more.

    Features:

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W).
    • Weight: 11.894 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone
  • PA-IIW-M-7075

    PA-IIW-M-7075

    PHASED ARRAY CALIBRATION BLOCK TYPE A (METRIC VERSION)

    The Phased Array block type A (metric version) has the following Phased Array applications described:

    Beam angle verification.
    Sensitivity calibration.
    Wedge delay calibration.
    DAC/TCG and more.

    Features:

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W).
    • Weight: 4.178 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone
