IIW Type 2

  • IIW2-1018

    IIW2-1018

    IIW TYPE 2 UT (IMPERIAL) CALIBRATION BLOCK

    Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) is used for the purposes described below:

    • Calibration of sensitivity, distance, resolution, and horizontal linearity on Straight Beam Transducers.
    • Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

    Features

    • Dimensions 4″ (height) X 12″ (length) X 1″ (width)
    • Weight 11,288 LBS
    • Material 1018 STEEL, NICKEL PLATED
    • Specifications ASTM E 164 FIG. A1.1. and TM 1-1500-335-23
    Read moreDone

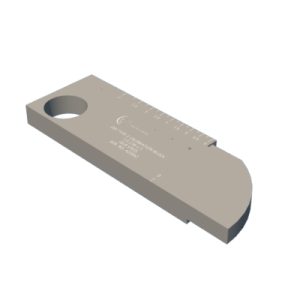

  • IIW2-304

    IIW2-304

    IIW TYPE 2 UT (IMPERIAL) CALIBRATION BLOCK

    Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) is used for the purposes described below:

    • Calibration of sensitivity, distance, resolution, and horizontal linearity on Straight Beam Transducers.
    • Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

    Features

    • Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
    • Weight: 11,473 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
    Read moreDone
  • IIW2-7075

    IIW2-7075

    IIW TYPE 2 UT (IMPERIAL) CALIBRATION BLOCK

    Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) is used for the purposes described below:

    – Calibration of sensitivity, distance, resolution, and horizontal linearity on.

    Straight beam transducers.

    – Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

    Features

    • Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
    • Weight: 4,110 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
    Read moreDone

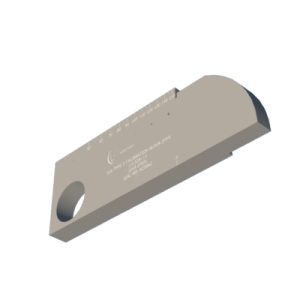

  • IIW2-M-1018

    IIW2-M-1018

    IIW TYPE 2 UT CALIBRATION BLOCK (METRIC)

    Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) (Metric Version) is used for the purposes described below:

    Calibration of sensitivity, distance, resolution and horizontal linearity on Straight Beam Transducers.
    Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

    Features

    • Dimensions 3.937″ (height) X 11.811″ (length) X 0.984″ (width)
    • Weight 10.856 LBS
    • Material 1018 STEEL, NICKEL PLATED
    • Specifications ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
    Read moreDone
  • IIW2-M-304

    IIW2-M-304

    IIW TYPE 2 UT CALIBRATION BLOCK (METRIC)

    Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) (Metric Version) is used for the purposes described below:

    Calibration of sensitivity, distance, resolution and horizontal linearity on Straight Beam Transducers.
    Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

    Features

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W)
    • Weight: 11.034 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
    Read moreDone
  • IIW2-M-7075

    IIW2-M-7075

    IIW TYPE 2 UT CALIBRATION BLOCK (METRIC)

    Manufactured in accordance with the specifications of the International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1, the IIW-Type 2 (IIW-Type 1 modified version) (Metric Version) is used for the purposes described below:

    Calibration of sensitivity, distance, resolution and horizontal linearity on straight beam transducers.
    Calibration of beam index, sound path angle, distance time base and distance sensitivity curve on angle beam transducers.

    Features:

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W).
    • Weight: 3.952 LBS
    • Material: 7075-T6 ALUMINUM
    • Specifications: ASTM E 164 FIG. A1.1. & TM 1-1500-335-23
    Read moreDone
