IIW Type 1 Block

  • IIW1-1018

    IIW1-1018

    CALIBRATION BLOCK IIW TYPE 1 UT (IMPERIAL)

    Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block is used for the purposes described below:

    Calibration of shear and longitudinal transducers.
    Verification of shear wedge exit point and refracted angle.
    Verification of resolution and sensitivity.

    Features

    • Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
    • Weight: 11,779 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone

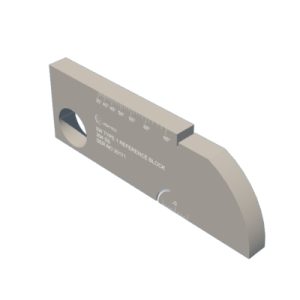

  • IIW1-304

    IIW1-304

    BLOQUE DE CALIBRACI脫N IIW TIPO 1 UT (IMPERIAL)

    Fabricado de acuerdo con el Instituto Internacional de Soldadura y ASTM E164, el bloque IIW-TYPE 1 se utiliza para los fines descritos a continuaci贸n:

    • Calibraci贸n de transductores de cizalladura y longitudinales.
    • Verificaci贸n del punto de salida de la cu帽a de cizallamiento y del 谩ngulo refractado.
    • Comprobaci贸n de la resoluci贸n y la sensibilidad.

    Caracter铆sticas

    Dimensiones: 4″ (alto) X 12″ (largo) X 1″ (ancho)
    Peso: 11.972 LBS
    Material: ACERO INOXIDABLE 304
    Especificaciones: ASTM E 164 FIG. A1.1

    Read moreDone

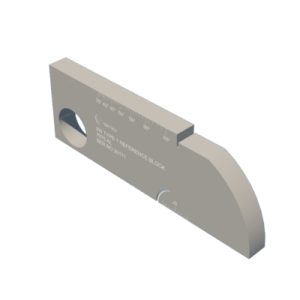

  • IIW1-7075

    IIW1-7075

    CALIBRATION BLOCK IIW TYPE 1 UT (IMPERIAL)

    Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block is used for the purposes described below:

    • Calibration of shear and longitudinal transducers.
    • Verification of shear wedge exit point and refracted angle.
    • Verification of resolution and sensitivity.

    Features

    • Dimensions: 4″ (height) X 12″ (length) X 1″ (width)
    • Weight: 4,286 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone
  • IIW1-M-1018

    IIW1-M-1018

    CALIBRATION BLOCK IIW TYPE 1 UT (METRIC VERSION)

    Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block (metric version) is used for the purposes described below:

    Calibration of shear and longitudinal transducers.
    Verification of shear wedge exit point and refracted angle.
    Verification of resolution and sensitivity.

    Features

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W)
    • Weight: 11.231 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone

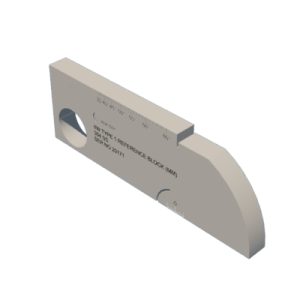

  • IIW1-M-304

    IIW1-M-304

    CALIBRATION BLOCK IIW TYPE 1 UT (METRIC VERSION)

    Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block (metric version) is used for the purposes described below:

    • Calibration of shear and longitudinal transducers.
    • Verification of shear wedge exit point and refracted angle.
    • Verification of resolution and sensitivity.
    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W)
    • Weight: 11.415 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone
  • IIW1-M-7075

    IIW1-M-7075

    CALIBRATION BLOCK IIW TYPE 1 UT (METRIC VERSION)

    Manufactured in accordance with the International Welding Institute and ASTM E164, the IIW-TYPE 1 block (metric version) is used for the purposes described below:

    • Calibration of shear and longitudinal transducers.
    • Verification of shear wedge exit point and refracted angle.
    • Verification of resolution and sensitivity.

    Features

    • Dimensions: 3.937″ (H) X 11.811″ (L) X 0.984″ (W)
    • Weight: 4.086 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.1
    Read moreDone
