DSC Block

  • DSC-1018

    DSC-1018

    DSC UT CALIBRATION BLOCK (IMPERIAL)

    The DSC block is used to calibrate the sensitivity and distance of the shear wave on ultrasonic equipment. With a 1.0″ radius and a 3.0″ radius on opposite faces, the block has a slot spaced .484″ from the flat surface, with a 3.0″ radius machined .375″ deep. The block includes a 0° reference pattern to check the exit point on the wedge, a 1/8″ diameter through hole spaced ¾” from the flat surface, and 45°, 60° and 70° marks to measure the actual refraction angle.

    Manufactured in accordance with ASTM E164 and AWS 6.16.1B.

    Features

    • Dimensions: 2.5″ (H) X 4.0″ (L) X 1.0″ (W)
    • Weight: 1.673 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASTM E 164 FIG. A1.11
    Read moreDone
  • DSC-304

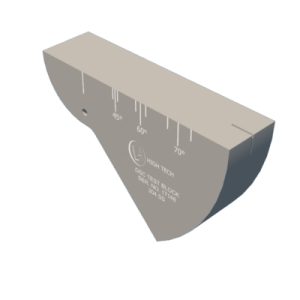

    DSC-304

    DSC UT CALIBRATION BLOCK (IMPERIAL)

    The DSC block is used to calibrate the sensitivity and distance of the shear wave on ultrasonic equipment. With a 1.0″ radius and a 3.0″ radius on opposite faces, the block has a slot spaced .484″ from the flat surface, with a 3.0″ radius machined .375″ deep. The block includes a 0° reference pattern to check the exit point on the wedge, a 1/8″ diameter through hole spaced ¾” from the flat surface, and 45°, 60° and 70° marks to measure the actual refraction angle.

    Manufactured in accordance with ASTM E164 and AWS 6.16.1B.

    Features

    • Dimensions: 2.5″ (H) X 4.0″ (L) X 1.0″ (W)
    • Weight: 1.701 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.11
    Read moreDone
  • DSC-7075

    DSC-7075

    DSC UT CALIBRATION BLOCK (IMPERIAL)

    The DSC block is used to calibrate the sensitivity and distance of the shear wave on ultrasonic equipment. With a 1.0″ radius and a 3.0″ radius on opposite faces, the block has a slot spaced .484″ from the flat surface, with a 3.0″ radius machined .375″ deep. The block includes a 0° reference pattern to check the exit point on the wedge, a 1/8″ diameter through hole spaced ¾” from the flat surface, and 45°, 60° and 70° marks to measure the actual refraction angle.

    Manufactured in accordance with ASTM E164 and AWS 6.16.1B.

    Features

    • Dimensions: 2.5″ (H) X 4.0″ (L) X 1.0″ (W)
    • Weight: 0.597 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.11
    Read moreDone
  • DSC-M-304

    DSC-M-304

    DSC UT CALIBRATION BLOCK (METRIC)

    The DSC block is used to calibrate the sensitivity and shear wave distance of ultrasonic equipment. With a 25mm radius and 75mm on opposite faces, the block has a slot spaced 12.10mm from the flat surface, with a 75mm radius machined to 9.40mm depth. The block includes a 0° reference pattern for checking the exit point on the wedge, a 3.20mm diameter through hole spaced 18.80mm from the flat surface and 45°, 60° and 70° marks for measuring the actual refraction angle.

    Manufactured in accordance with ASTM E164 and AWS 6.16.1B.

    Features

    • Dimensions: 2.461″ (H) X 3.937″ (L) X 0.984″ (W)
    • Weight: 1,621 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASTM E 164 FIG. A1.11
    Read moreDone
  • DSC-M-7075

    DSC-M-7075

    DSC UT CALIBRATION BLOCK (METRIC)

    The DSC block is used to calibrate the sensitivity and shear wave distance of ultrasonic equipment. With a 25mm radius and 75mm on opposite faces, the block has a slot spaced 12.10mm from the flat surface, with a 75mm radius machined to 9.40mm depth. The block includes a 0° reference pattern for checking the exit point on the wedge, a 3.20mm diameter through hole spaced 18.80mm from the flat surface and 45°, 60° and 70° marks for measuring the actual refraction angle.

    Manufactured in accordance with ASTM E164 and AWS 6.16.1B.

    Features

    • Dimensions: 2.461″ (height) X 3.937″ (length) X 0.984″ (width)
    • Weight: 0.569 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASTM E 164 FIG. A1.11
    Read moreDone
