AWS Resolution Block

  • AWSR-1018

    AWSR-1018

    AWS RESOLUTION UT CALIBRATION BLOCK

    The AWS Resolution Block (RC Block) is used to check the resolution capability of angle beam transducers. With 3 sets of 3 through holes of 1.59 mm (0.0626″) diameter for 45°, 60° and 70°, the block is manufactured in accordance with AWS Welding Highway and Railway Bridges Specification D2.0, and ANSI/AWS D1.1 Structural Welding Code.

    Features

    • Dimensions: 1.0″ (height) X 6.0″ (length) X 3.0″ (width)
    • Weight: 5,108 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: AWS D1.1/D1.1M FIGURE 6.20
    Read moreDone
  • AWSR-304

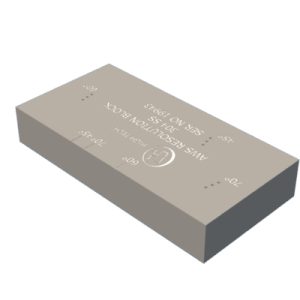

    AWSR-304

    AWS RESOLUTION UT CALIBRATION BLOCK

    The AWS resolution block (RC block) is used to check the resolution capability of angle beam transducers. With 3 sets of 3 through holes of 1.59 mm (0.0626â⒬Â) diameter for 45°, 60° and 70°, the block is manufactured in accordance with AWS Welding Highway and Railway Bridges Specification D2.0, and ANSI/AWS D1.1 Structural Welding Code.

    Features

    • Dimensions: 1.0″ (height) X 6.0″ (length) X 3.0″ (width)
    • Weight: 5,193 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: AWS D1.1/D1.1M FIGURE 6.20
    Read moreDone
  • AWSR-7075

    AWSR-7075

    AWS RESOLUTION UT CALIBRATION BLOCK

    The AWS resolution block (RC block) is used to check the resolution capability of angle beam transducers. With 3 sets of 3 through holes of 1.59 mm (0.0626â⒬Â) diameter for 45°, 60° and 70°, the block is manufactured in accordance with AWS Welding Highway and Railway Bridges Specification D2.0, and ANSI/AWS D1.1 Structural Welding Code.

    Features

    • Dimensions: 1.0″ (height) X 6.0″ (length) X 3.0″ (width)
    • Weight: 1,824 LBS
    • Material: 7075-T6 ALUMINUM
    • Specifications: AWS D1.1/D1.1M FIGURE 6.20
    Read moreDone
