ASME SEC. V Block

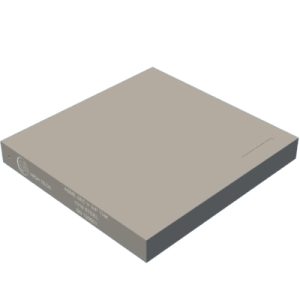

  • ASME-1018-5

    ASME-1018-5

    ASME SEC V UT CALIBRATION BLOCK (3/4” THICK)

    The Asme Sec V ¾ block is used for obtaining primary reference responses in ultrasonic inspection of primary reference welds in ultrasonic inspection of welds. The calibration block is manufactured with 1 laterally drilled hole on one face (at 3/32“ diameter, 1.75” deep, located through the thickness at 1/2T), 2 laterally drilled holes on the opposite face (at 3/32“ diameter, 1.75” deep, located through the thickness at ¼ and 3/4T), 2 EDM notches on the top and bottom faces, both sized 2%T deep x 1/8“ wide x 1-3/8” long.

    Customization available if required for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

    Features

    Dimensions: 0.75“ (H) X 6.25” (L) X 6.0” (W)
    Weight: 7.985 LBS
    Material: 1018 STEEL, NICKEL PLATED
    Specifications: ASME SEC V, ART 4, FIG. T-434.2.1

    Read moreDone
  • ASME-1018-7

    ASME-1018-7

    ASME SEC V UT CALIBRATION BLOCK (1-1/2″ THICK)

    The Asme Sec V 1-1/2 block is used to obtain primary reference responses in ultrasonic inspection of primary reference welds in ultrasonic inspection of welds. The calibration block is manufactured with 1 laterally drilled hole on one face (at 1/8″ diameter, 1.75″ depth, located through the thickness at 1/2T), 2 laterally drilled holes on the opposite face (at 1/8″ diameter, 1.75″ depth, located through the thickness at ¼ and 3/4T), 2 EDM notches on the top and bottom faces, both sized 2%T deep x 1/8″ wide x 1-3/8″ long. Customization available if required for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

    Features

    • Dimensions: 1.5″ (H) X 6.25″ (L) X 6.0″ (W)
    • Weight: 15,972 LBS
    • Material: 1018 STEEL, NICKEL PLATED
    • Specifications: ASME SEC V, ART 4, FIG. T-434.2.1
    Read moreDone

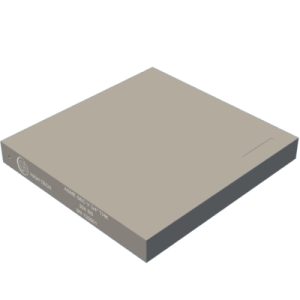

  • ASME-304-5

    ASME-304-5

    BLOQUE DE CALIBRACIÓN ASME SEC V UT (3/4″ DE ESPESOR)

    El bloque Asme Sec V ¾ se utiliza para la obtención de respuestas de referencia primarias en la inspección ultrasónica de soldaduras. El bloque de calibración está hecho con 1 orificio perforado lateralmente en una cara (a 3/32″ de diámetro, 1,75″ de profundidad, situado a través del espesor a 1/2T), 2 orificios perforados lateralmente en la cara opuesta (a 3/32″ de diámetro, 1. 75″ de profundidad, situados a través del espesor a ¼ y 3/4T), 2 muescas EDM en las caras superior e inferior, ambas dimensionadas a 2%T de profundidad x 1/8″ de ancho x 1-3/8″ de largo.

    Personalización disponible si es necesario para muescas y orificios. El bloque de referencia se fabrica de acuerdo con ASME Sec V Art. 4 Fig. T-434.2.1.

    Características

    Dimensiones: 0.75″ (H) X 6.25″ (L) X 6.0″ (W)
    Peso: 8.117 LBS
    Material: ACERO INOXIDABLE 304
    Especificaciones: ASME SEC V, ART 4, FIG. T-434.2.1

    Read moreDone
  • ASME-304-7

    ASME-304-7

    ASME SEC V UT CALIBRATION BLOCK (1-1/2″ THICK)

    The Asme Sec V 1-1/2 block is used to obtain primary reference responses in ultrasonic inspection of primary reference welds in ultrasonic inspection of welds. The calibration block is manufactured with 1 laterally drilled hole on one face (at 1/8″ diameter, 1.75″ depth, located through the thickness at 1/2T), 2 laterally drilled holes on the opposite face (at 1/8″ diameter, 1.75″ depth, located through the thickness at ¼ and 3/4T), 2 EDM notches on the top and bottom faces, both sized 2%T deep x 1/8″ wide x 1-3/8″ long. Customization available if required for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

    Features

    • Dimensions: 1.5″ (H) X 6.25″ (L) X 6.0″ (W)
    • Weight: 16,236 LBS
    • Material: 304 STAINLESS STEEL
    • Specifications: ASME SEC V, ART 4, FIG. T-434.2.1
    Read moreDone

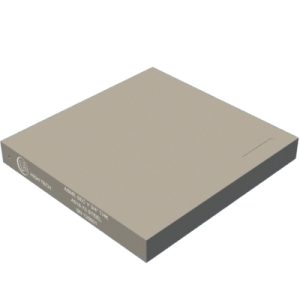

  • ASME-5167-5

    ASME-5167-5

    ASME SEC V UT CALIBRATION BLOCK (3/4″ THICK)

    The Asme Sec V ¾ block is used for obtaining primary reference responses in ultrasonic inspection of welds. The calibration block is made with 1 laterally drilled hole on one face (at 3/32″ diameter, 1.75″ deep, located through the thickness at 1/2T), 2 laterally drilled holes on the opposite face (at 3/32″ diameter, 1. 75″ deep, located through the thickness at ¼ and 3/4T), 2 EDM notches on the top and bottom faces, both sized at 2%T deep x 1/8″ wide x 1-3/8″ long.

    Customization available if needed for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

    Features

    • Dimensions: 0.75″ (H) X 6.25″ (L) X 6.0″ (W)
    • Weight: 7.964 LBS
    • Material: ASTM A516 GRADE 70 STEEL.
    • Specifications: ASME SEC V, ART 4, FIG. T-434.2.1
    Read moreDone

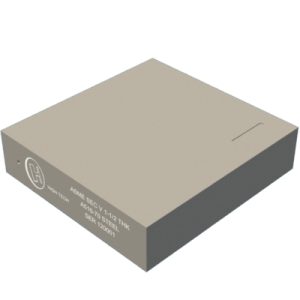

  • ASME-5167-7

    ASME-5167-7

    ASME SEC V UT Calibration Block (1-1/2″ thick).

    The Asme Sec V 1-1/2 block is used for obtaining primary reference responses in ultrasonic inspection of welds.

    The calibration block is manufactured with 1 laterally drilled hole on one face (at 1/8″ diameter, 1.75″ deep, located through the thickness at 1/2T), 2 laterally drilled holes on the opposite face (at 1/8″ diameter, 1.75″ deep, located through the thickness at ¼ & 3/4T), 2 EDM notches on the top and bottom faces, both sized at 2″ deep x 1/” wide x 1-3/8″ long.

    Customization available if required for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

    Features

    • Dimensions: 1.5″ (H) X 6.25″ (L) X 6.0″ (W)
    • Weight: 15.931 LBS
    • Material: ASTM A516 Grade 70 Steel
    • Specifications: ASME SEC V, ART 4, FIG. T-434.2.1
    Read moreDone
  • ASME-7075-5

    ASME-7075-5

    BLOQUE DE CALIBRACIÓN ASME SEC V UT (3/4″ DE ESPESOR)

    El bloque Asme Sec V ¾ se utiliza para la obtención de respuestas de referencia primarias en la inspección ultrasónica de soldaduras. El bloque de calibración está hecho con 1 orificio perforado lateralmente en una cara (a 3/32″ de diámetro, 1,75″ de profundidad, situado a través del espesor a 1/2T), 2 orificios perforados lateralmente en la cara opuesta (a 3/32″ de diámetro, 1. 75″ de profundidad, situados a través del espesor a ¼ y 3/4T), 2 muescas EDM en las caras superior e inferior, ambas dimensionadas a 2%T de profundidad x 1/8″ de ancho x 1-3/8″ de largo.

    Personalización disponible si es necesario para muescas y orificios. El bloque de referencia se fabrica de acuerdo con ASME Sec V Art. 4 Fig. T-434.2.1.

    Características

    Dimensiones: 0.75″ (H) X 6.25″ (L) X 6.0″ (W)
    Peso: 8.117 LBS
    Material: 7075-T6 ALUMINUM
    Especificaciones: ASME SEC V, ART 4, FIG. T-434.2.1

    Read moreDone

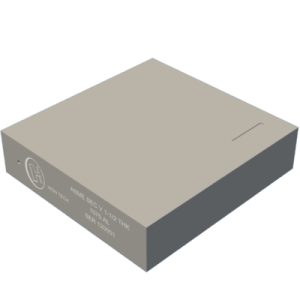

  • ASME-7075-7

    ASME-7075-7

    ASME SEC V UT CALIBRATION BLOCK (1-1/2″ THICK)

    The Asme Sec V 1-1/2 block is used for obtaining primary reference responses in ultrasonic inspection of welds. The calibration block is manufactured with 1 side drilled hole on one face (at 1/8″ diameter, 1.75″ deep, located through the thickness at 1/2T), 2 side drilled holes on the opposite face (at 1/8″ diameter, 1.75″ deep, located through the thickness at ¼ & 3/4T), 2 EDM notches on the top and bottom faces, both sized at 2%T deep x 1/8″ wide x 1-3/8″ long.

    Customization available if required for notches and holes. Reference block is manufactured in accordance with ASME Sec V Art 4 Fig. T-434.2.1.

    Features

    • Dimensions: 1.5″ (height) X 6.25″ (length) X 6.0″ (width)
    • Weight: 5,703 LBS
    • Material: 7075-T6 ALUMINIUM
    • Specifications: ASME SEC V, ART 4, FIG. T-434.2.1
    Read moreDone
