Dye Penetrant Testing (PT)
Showing 1–16 of 25 results
-
Category -
CategoryCleaners (3)
-
CategoryDevelopers (5)
- Category
Emulsifiers
- Category
Fluorescent Liquid Penetrants (5)
- Category
Liquid Penetrant Systems (3)
- Category
Others
- Category
Post-Emulsifying Liquid Penetrants (3)
- Category
Visible Liquid Penetrants (7)
-

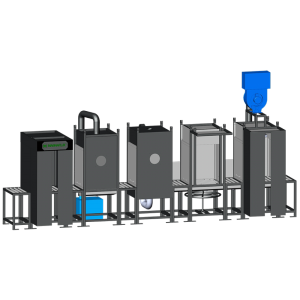

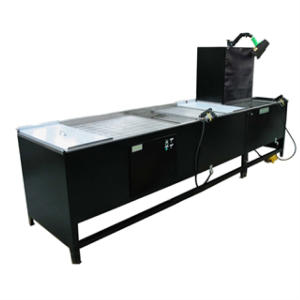

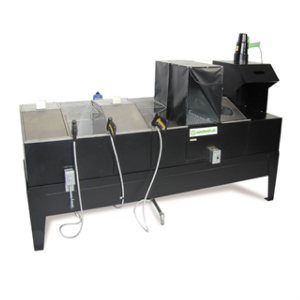

Modular Penetrant Testing Equipment
Magnaflux’s modular penetrant equipment design makes it simple and cost-effective to build the right equipment for every process, including water wash, lipophilic and hydrophilic LPI testing, while also conforming easily to fit the required work flow and available floor space with straight line, U-shaped and L-shaped designs.
-

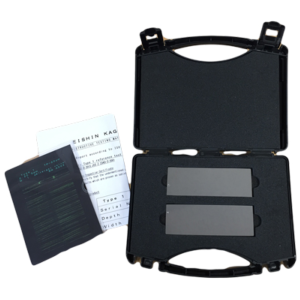

NiCr Test Panels
For Liquid Penetrant Testing NDT
NiCr test pieces for liquid penetrant inspection will help you maintain your PT testing process by verifying penetrant sensitivity and performance. Use to check for penetrant deterioration, to compare different penetrants or to verify sensitivity or visibility. NiCr Test Panels are ideal penetrant sensitivity comparators. They come in pairs, with panel set crack depths available in 20 microns.
-

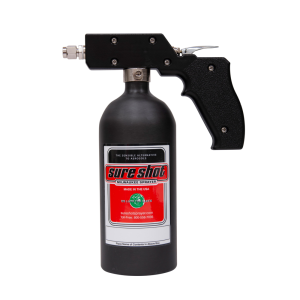

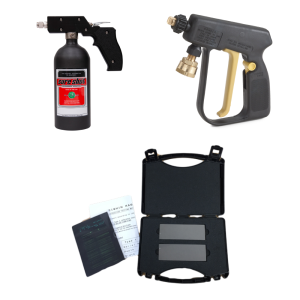

Penetrant Testing Applicators
Portable Pressure Sprayer and Water Spray Gun
These product applicators and water sprayers will help you speed up your penetrant inspection process by offering fast, consistent and even application of product or water to the part surface. Manufactured from high-quality materials and components, this water sprayer and portable pressure sprayer will deliver years of trouble free performance under all usage situations and in a variety of liquid penetrant testing applications.
-

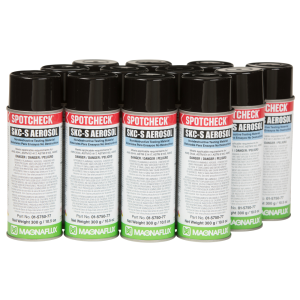

SKC-S
NDT Cleaner & Remover
SKC-S is an NDT-approved solvent cleaner/remover for pre-cleaning before non-destructive testing and for removing excess surface penetrant from an inspection area before applying developer during liquid penetrant testing.
This non-halogenated solvent remover can be used on a wide range of substrates to remove oils, greases and other contaminants. SKC-S dries quickly without leaving a residue, and meets the low-residue requirements for NDT and aerospace penetrant testing.
-
-

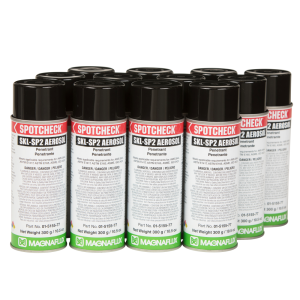

SKL-SP2
Solvent Removable Visible Dye Penetrant
SKL-SP2 is a solvent removable visible red dye penetrant. SKL-SP2 locates surface-breaking discontinuities with a simple three-step process that is ideal for basic industrial nondestructive testing. SKL-SP2 features high-performance penetrating characteristics and produces clear vivid red indications.
-
-
-
-

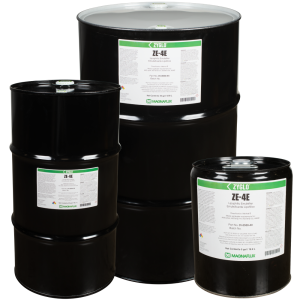

ZE-4E
Lipophilic Emulsifier
A Method B lipophilic emulsifier, ZE-4E diffuses into the penetrant to clear the penetrant from the surface of the part being inspected. It is rinsed from the part by water, carrying penetrant off the part surface. Designed to be used with post-emulsifiable penetrants Level 2 ZL-2C, Level 3 ZL-27A or Level 4 ZL-37. Benefits include low volatility and a high flash point, so ZE-4E can be used in open immersion tanks.
ZE-4E is listed on the QPL SAE AMS 2644 Qualified Product List.
-

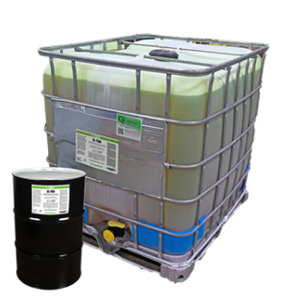

ZL-150
Level 2 Water Washable Fluorescent Penetrant
Specially designed to reduce the cost of quality inspections, ZL-150 fluorescent water washable penetrant is ideal for finding indications in rough cast parts in high-volume dip applications. Foundries and casting houses will find this penetrant particularly useful in reducing cost while maintaining strong Level 2 fluorescent penetrant performance in sensitivity and removability.
-

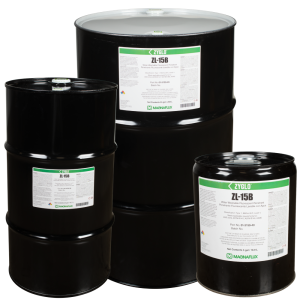

ZL-15B
Level 1/2 Water Washable Fluorescent Penetrant
ZL-15B water washable penetrant is a low-sensitivity penetrant that features excellent washability. It is used to find open surface flaws such as cracks and porosity in seams, laps, cold shuts, and laminations on castings, forgings, extrusions, and parts with rough surfaces.
-

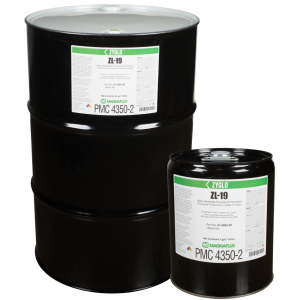

ZL-19
Level 1 Water Washable Fluorescent Penetrant
A water-removeable Level 1 penetrant, ZL-19 is designed for use on rough or unmachined surfaces such as castings and forgings to find larger discontinuities in non-safety critical components. It is ideal for inspecting automotive and general industrial components such as engine cylinder blocks, power train components, rocker arms, pistons, steering knuckles, etc.
-
ZL-27A
Level 3 Post Emulsifiable Fluorescent Penetrant
Post-emulsifiable ZL-27A is a Level 3, high-sensitivity Type 1 penetrant designed for inspections which require maximum process control and reliability, such as safety-critical aerospace testing. Since ZL-27A is not water soluble, there is minimal risk of this penetrant being removed from a fine or shallow defect through over-washing to provide the highest reliability of any penetrant inspection method.
-

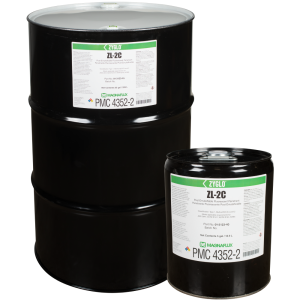

ZL-2C
Level 2 Post Emulsifiable Fluorescent Penetrant
A medium sensitivity penetrant (Level 2), ZL-2C fluorescent post-emulsifiable penetrant is designed to be removed from the part surface by emulsifiers or solvent. With a UV-A light source, indications will appear as a bright green-yellow fluorescence. ZL-2C has a high flash point, and is designed to be used in open dip tanks.
ZL-2C is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney.
-
ZL-37
Level 4 Post Emulsifiable Fluorescent Penetrant
Essential for critical component applications, ultra-high sensitivity ZL-37 post-emulsifiable penetrant is designed for detecting fine, tight discontinuities in safety-critical components, such as titanium turbine components, and in high-stress parts, such as investment castings.
